Congratulations on your purchase of the power Comfort Recliner® by American Leather®. Following are helpful hints and important safety information regarding the use and care of your Comfort Recliner®. Please review this instruction manual thoroughly before using your power Comfort Recliner®. This product is intended for household / residential use only.
Important Safety Instructions
Read all instructions before using the power Comfort Recliner®. When using an electrical appliance, basic precautions should always be followed, including the following:
DANGER! To Reduce the Risk of Electric Shock:
Always unplug the power Comfort Recliner® from the electrical outlet before cleaning.
WARNING! Risk of Injury:
Keep children away from the extended foot support and any moving parts.
CAUTION! Do not allow children to play on this power Comfort Recliner® or operate the power Comfort Recliner® mechanism. The leg rest folds down when closing and could possibly cause injury to a child. Always leave the power Comfort Recliner® in an upright and closed position when not in use. Keep hands and feet clear of mechanism. Only the occupant should operate it.
Safety or Recall Notices:
Register your Comfort Recliner® warranty at americanleather.com. This will ensure that American Leather® can contact you in the event of a safety notice or product recall. Please contact your American Leather® retailer if you did not receive warranty registration information with your power Comfort Recliner®.
Power Cord Safety
WARNING! UNPLUG AND REMOVE POWER CORD FROM THE WALL AND THE POWER SOCKET AT THE REAR OF THE POWER COMFORT RECLINER® WHEN NOT IN USE AND STORE THE CORD OUT OF REACH OF CHILDREN.
Take care when moving the power Comfort Recliner® that the power cord is not under the base or legs of the Comfort Recliner®, or it may get damaged. Never operate the power Comfort Recliner® if it has a damaged cord or plug.
Footrest Entrapment:
The power Comfort Recliner® has a spring-loaded footrest to prevent entrapment when the power Comfort Recliner® is being closed. In the event that something obstructs the footrest, it will stay partially open via springs located on both sides of the power Comfort Recliner®, even if the motor continues to the fully closed position.
In the Event of an Obstruction:
- Immediately stop the power Comfort Recliner®.
- Carefully open the power Comfort Recliner® and free the obstruction. If necessary, manually pull outward on the spring-loaded footrest and then free the obstruction.
WARNING!
To reduce the risk of burns, fire, electric shock, or injury to persons:
- Use the power Comfort Recliner® only for its intended use as described in this manual.
- Only operate the power Comfort Recliner® when seated.
- Never press or activate the control switch if you are not actually sitting in the power Comfort Recliner®.
- Only the occupant should activate the switch.
- Operation is designed for one person only.
- Never operate the power Comfort Recliner® with more than one person sitting on an individual seat.
- Never sit or stand on the footrest.
- Each power Comfort Recliner® seat can accommodate an occupant of up to 300 pounds maximum.
- Do not race, play with, or abuse the power Comfort Recliner® mechanism.
- Never operate the power Comfort Recliner® if it has a damaged cord or plug, if it is not working properly, if it has been dropped or damaged, or dropped into water.
- Contact your local retailer for examination and repair.
- To unplug the power, return the power Comfort Recliner® to the upright and closed position and then remove plug from the wall outlet or power socket from the rear of the power Comfort Recliner®.
- Unplug from outlet before putting on or taking off parts.
- Close supervision is necessary when the power Comfort Recliner® is used by or near children or disabled persons.
- Keep cord away from heated surfaces.
- Never drop or insert any object into any opening.
- Do not use outdoors.
- Do not operate where aerosol (spray) products are being used or where oxygen is being administered.
- Never operate the power Comfort Recliner™ with their openings blocked. Keep the air openings free of lint, hair, and the like.
POWER SUPPLY
Voltage in: 100-120V – 50/60 Hz Lin: 1.2A
Voltage out: 29 Vdc Lout: 1.8A
Duty Cycle 2 min ON/20 min OFF
Class 2 Power Supply
Servicing of Double-Insulated Products:
The power Comfort Recliner® is a double-insulated product. In a double-insulated product, two systems of insulation are provided instead of grounding. No grounding means is provided on a double-insulated product, nor is a means for grounding to be added to the product. Servicing a double-insulated product requires extreme care and knowledge of the system, and is to be done only by qualified service personnel. Replacement parts for a double-insulated product must be identical to the parts they replace. A double-insulated product is marked with the words “DOUBLE INSULATION” or “DOUBLE INSULATED.” The symbol (Square within a square ) is also able to be marked on the product.
BATTERY SAFETY (OPTIONAL):
If battery operation was purchased as an optional accessory to your power Comfort Recliner® there are additional safety instructions to be followed.
DANGER! Risk of physical injury:

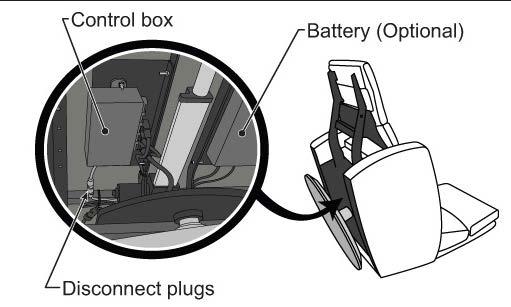

The power Comfort Recliner® has a control that is located remotely from the battery that must be secured before servicing. (See Figure 2)
WARNING! Unplug and remove the power cord from the wall and FROM the power socket at the rear of the power COMFORT RECLINER™ when not in use and store out of reach of children. also, unplug the master power cord from the control box to prevent use when a battery is mounted in the COMFORT RECLINER™ power system. (See Figure 2 to right)
WARNING! Only use an identical replacement battery supplied by your local American Leather® retailer. The battery is matched to the charging system in the power Comfort Recliner™. Use of a non-identical battery could cause risk of burns, fire, electric shock, or injury to persons. Replacement batteries can be ordered from your local American Leather® retailer.
- Do not use a non-rechargeable battery
- Do not mix old and new batteries
- Do not mix non-rechargeable and rechargeable batteries
- Use only one battery – Do not chain batteries together
User Maintenance Instructions
Unplug the outlet cord before cleaning the power Comfort Recliner™. If the power Comfort Recliner™ is equipped with an optional battery, also unplug the master power cord from the control box before cleaning or performing maintenance. (See Figure 2)
Do not use any liquids or spray cleaners on any electrical components.
Follow the cleaning code located on the swatch label under the footrest or in your warranty booklet to clean the upholstery cover.
It is not necessary to lubricate any components of the power Comfort Recliner™.
None of the electrical components are user-serviceable. Any other servicing should be performed by an authorized service representative.
If the power cable or transformer are ever damaged, they can be ordered from your American Leather® retailer.
OVERLOAD PROTECTION
The power Comfort Recliner™ has both electronic and thermal overload protection. If the weight limit of the power Comfort Recliner™ is substantially exceeded or an obstruction keeps the power Comfort Recliner™ from being able to open or close, an electronic overload sensor will prevent the motor from operating. In addition, the transformer is equipped with a thermal fuse. If the motor or transformer is overworked, this thermal fuse is tripped, which shuts off the motor and transformer. The thermal fuse will automatically reset in 10-15 minutes after the transformer has cooled down. The power Comfort Recliner™ may then be used normally.
STORAGE
If the power Comfort Recliner™ will not be used for an extended period of time, remove the cord from the power socket and wall outlet and store the cord out of reach of children. If the power Comfort Recliner™ is equipped with an optional battery, also unplug the master power cord from the control box.
• Store the power Comfort Recliner™ in a dry interior location.
CONTROL PANEL ATTACHED TO SEATING UNIT
OPERATING CONTROL PANEL:

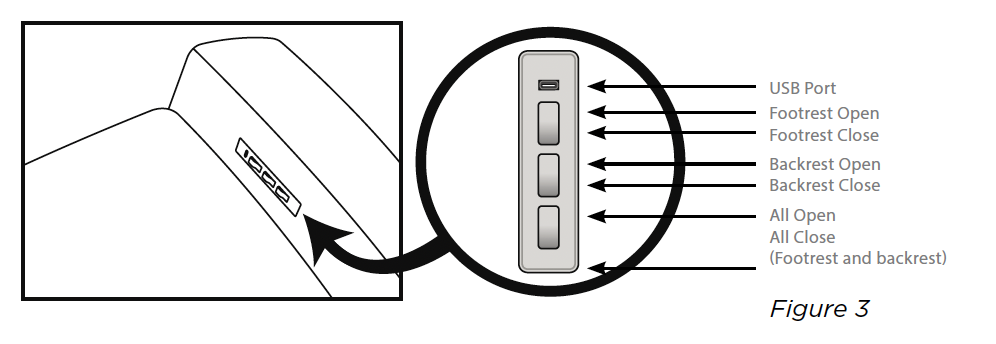

The control buttons are backlit with LED lights that turn on automatically when a button is touched, and will turn off automatically about 5 to 6 seconds later. (See Figure 3)
FOOTREST & BACK RECLINE
The footrest has infinite stopping positions, independent from the power Comfort Recliner™ back recline. To raise the footrest, press the raised area of the front toggle switch located next to the USB port. If you are sitting in the power Comfort Recliner™, this is the farthest button from the backrest. Simply release the button to stop the footrest in any position. To close, press the rear area of the same toggle switch. (See Figure 3)
The back recline also has infinite stopping positions, independent from the footrest. To recline the backrest, press the raised area of the middle toggle switch. When you have reached your desired position, simply release the button to stop the backrest in any position. To close, press the rear area of the same toggle switch.
To open both the footrest and the backrest at the same time, press the raised area of the third toggle switch. To close both footrest and backrest at the same time, press the rear area of the third button closest to the backrest. This button will close the footrest and return the backrest to the full upright position.

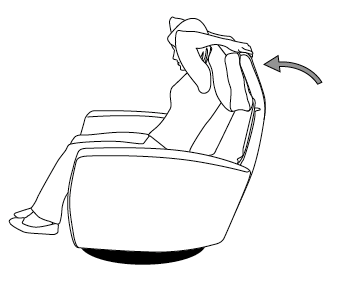

ADJUSTING HEADREST
The Comfort Recliner™ headrest adjusts to provide back and neck support. The headrest articulates forward to create the perfect angle for watching television or reading a book. When standing behind the power Comfort Recliner™, you can change the angle by pressing forward on the outside of the headrest. However, if you are already sitting and want to adjust the angle, place both hands on the back of the headrest and pull forward to your desired position. To return the articulating headrest to its normal position, simply push back with your hands.
OPTIONAL BATTERY POWER
The purchase of the optional battery for use in the power Comfort Recliner™ allows the power Comfort Recliner™ to be operated either with the cord plugged into the wall, or with battery power only. This allows you to float the power Comfort Recliner™ in the room without cords attached.
Battery Life:
The optional battery is a 1.8 Amp hour Lithium Ion (1.8 A/h Li-ion) battery in a fully enclosed case. The minimum life expectancy of the battery is 500 complete charge/ discharge cycles.
A fully charged battery will provide about 100 complete open/close cycles before it needs to be recharged. When the battery needs charging the power Comfort
Recliner™ will begin to operate more slowly, indicating the battery is running out. If the battery gets to about 10% of capacity, a beeping tone will sound when any of the control buttons are pressed, indicating that the power Comfort Recliner™ needs to be recharged immediately. Please note that for optimal battery life, the battery should not be used to its capacity, or used until the power Comfort Recliner™ stops working. It is recommended that the battery be charged once per month if it is not going to be used for an extended period of time.
Battery Recharging:

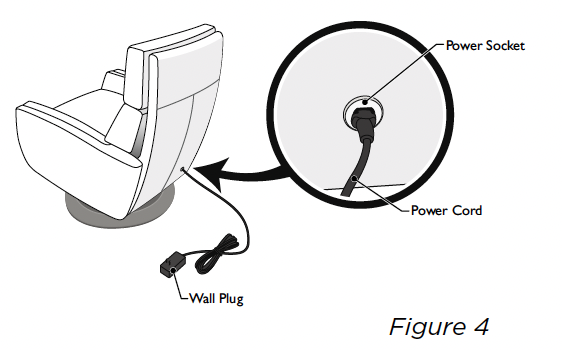

To recharge the battery in the power Comfort Recliner™, plug the cord from the power supply into the power socket at the rear of the power Comfort Recliner™ and then plug the power supply into an electrical outlet as shown in (Figure 4).
The power system has an automatic power selector system that chooses battery power or power from the wall outlet, depending on whether the power Comfort Recliner™ is plugged in or not. If the power Comfort Recliner™ is plugged in for recharging, the automatic power selector system will provide power to charge the battery and operate the power Comfort Recliner™ at the same time. If the cord is plugged into the power Comfort Recliner™ continuously, the system will not overcharge the battery. The charging time for the battery is about eight hours. To determine if the battery is done charging, open the footrest and look under the power Comfort Recliner™ footrest at the battery. The LED light on the battery will be a solid GREEN if it is fully charged and flashing AMBER if it is still charging.
Battery Replacement Instructions (OPTIONAL)
Your power Comfort Recliner™ may be equipped with optional battery power. Follow the instructions below for the power Comfort Recliner™ that are equipped with this feature.

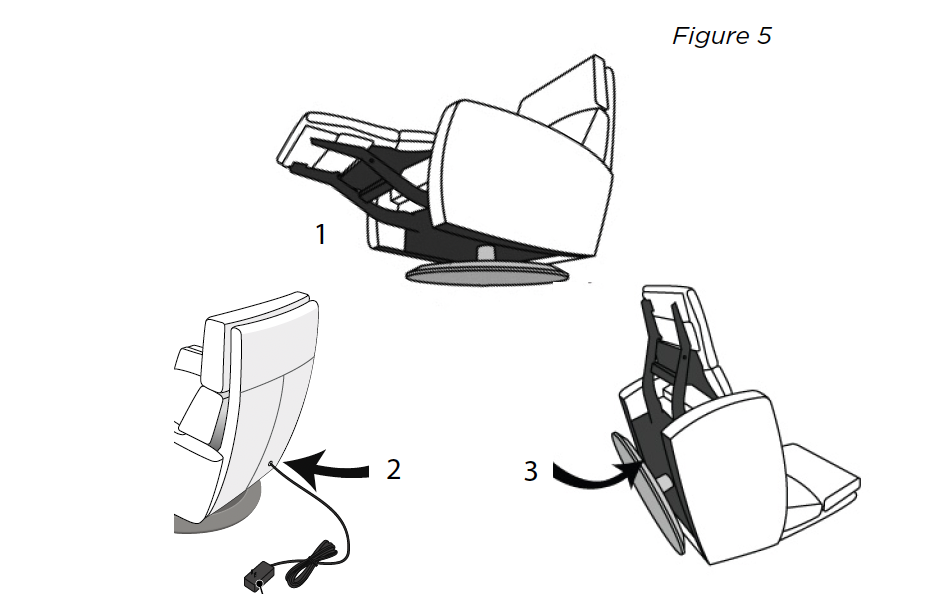

In the event that the battery needs to be replaced: (See Figure 5)
- Fully open (extend) the footrest and the backrest of the power Comfort Recliner™.
- Unplug the power socket from the rear of the power Comfort Recliner™.
- Tip the power Comfort Recliner™ onto its back as shown in Figure 5. Because of the power Comfort Recliner™ weight and size, a second person is recommended to assist in this task.

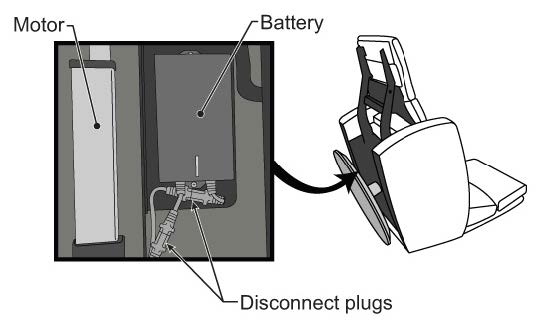

- Locate the battery to the right of the motor. (See Figure 6)
Disconnect both battery cord plugs. (See figure 6)

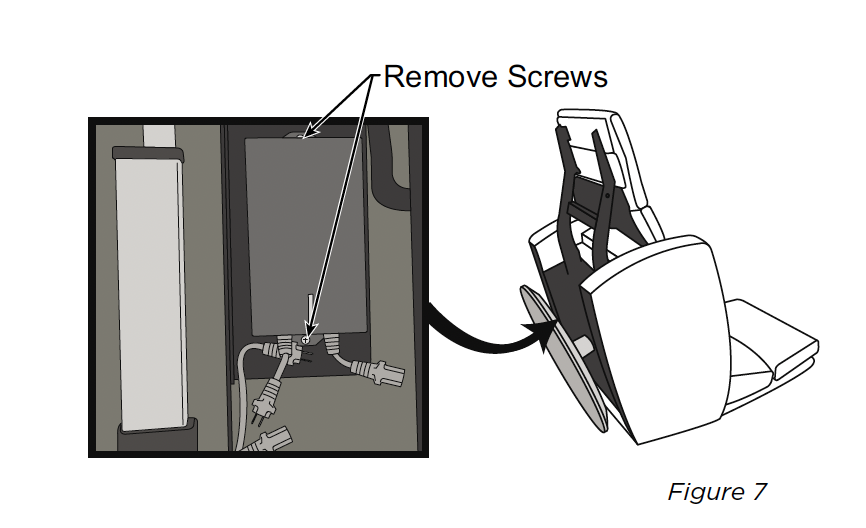

- Remove the two screws holding the battery to the tray. (See Figure 7)
Remove battery from the power Comfort Recliner™.
- Install new battery with two screws, plug both cords into the connector cords. (Assembly should look like Figure 7.)
- Place the power Comfort Recliner™ in the upright position and plug the cord back into the power socket at the back of the power Comfort Recliner™. Then plug the other end of the power cord into the wall outlet.
- Look under the footrest at the battery; the LED at the front of the battery will be flashing AMBER when it is charging and solid GREEN when it is fully charged. Let the new battery charge overnight. The power Comfort Recliner™ can be used normally when it is plugged in and the battery is charging.
We know you will enjoy your Comfort Recliner™ by American Leather® and thank you for your purchase. Register your Comfort Recliner™ warranty at americanleather.com.
